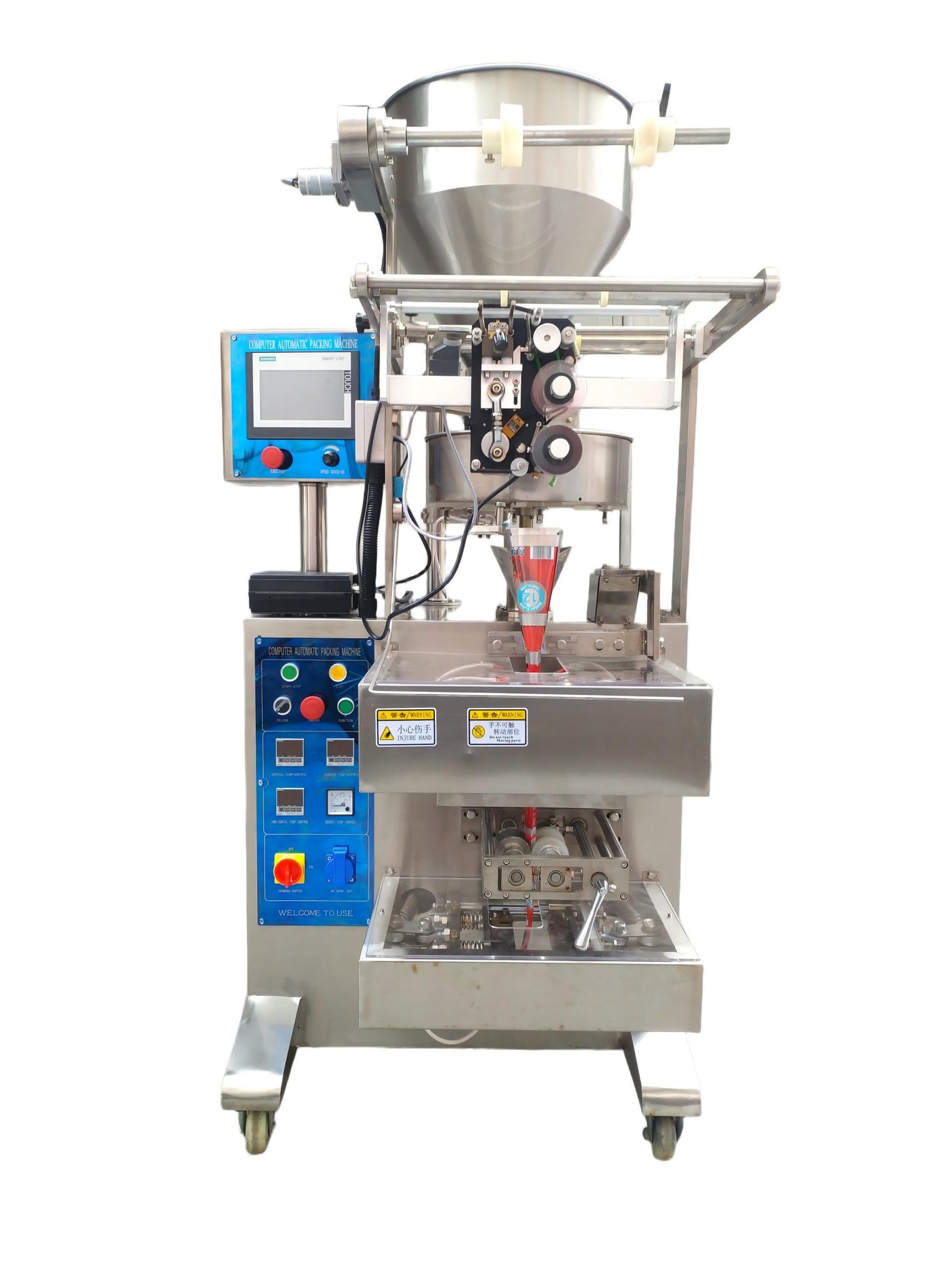

Grano Sachet Packing Machine
Granule small sachet packaging machine is equipped with an integrated volumetric cup feeding system. It can automatically complete the whole process of bag forming, metering, feeding, sealing, cutting and finished product discharging.
Designed for small pouch packaging of granular materials, the volumetric cup metering structure features stable performance, convenient adjustment and high metering accuracy.
Constructed with food-grade 304 stainless steel, the machine can be fitted with servo drive, HMI and fault alarm system. It has a compact structure and easy maintenance. Suitable for small bag packaging of various granular materials, widely used in food, condiment, seed, daily chemical granule and other industries. Pouch style and packaging speed can be adjusted as required.
Grano Sachet Packing Machine
- Siemens PLC control system with 7 inch HMI. Working Status Indicated.
- Photocell for film length registered and automatic adjustment in 3 bags.
- Simple and fast bag size changeover with one-piece forming sets.
- Work with most of laminated heat seal films.
- All product contact parts in #304 stainless steel or food grade plastic.
- Protective Cover for cutter.
- Various types of laminated films namely PE/BOPP, CPP/BOPP, CPP/PET,
Applications:
Integrated with volumetric cup dosing system, the VFH-G series packaging machine is suitable for sugar, rice, tea, potato chips, ground coffee, snack food and other granular food & non-food products.
Technical Specification:
Model | VFH-G320 | VFH-G520 | VFH-3S-G320 | VFH-4S-G320 |
Bag Styles | Pillow Bag | 3 side seal bag | 4 Side Seal Bag | |
Bag Width | 30 to 135mm (1.18 to 5.31’’) | 80-250mm (3.15 to 9.84’’) | 25 to 135mm (0.98 to 5.31’’) | 25 to 135mm (0.98 to 5.31’’) |
Bag Length | 30 to 180mm (1.18 to 7’’) | 50-300mm (1.97 to 11.8’’) | 30 to 150mm (1.18 to 5.9’’) | 30 to 150mm (1.18 to 5.9’’) |
Product Characteristic | Granules | |||
Dosing system Compatible | Volumetric Cup | |||
Running Motion | Intermittent | |||
Working Efficiency | 40-80 bags/min | 20-60bags/min | 40-80bags/min | 35-80bags/min |
Control by | SCM with colorful HMI screen | |||
Date Coding Can Be | Hot Stamping Coder | |||
Options Available | Perforation, SS Frame, Gas Flushing, Hot Stamping Coder, Strip Bags | |||
Film & Reel | 0.04-0.12mm (30-120mic.) Real Max.Dia.400mm(15.75″) Real Core Dia.75mm (2.95″) | |||
Max. Reel Width 300mm (11.81″) | Max. Reel Width 400mm (15.75″) | Max. Reel Width 270mm (10.63″) | Max. Reel Width 270mm (10.36″) | |
Power & Voltage | 1.35KW, AC220V/50Hz | 2KW,AC220V/50Hz | 1.2KW,AC220V/50Hz | 1.8KW, AC220V/50Hz |
Dimensions | 650*850*1650mm (25.59*33.46*64.96″) | 820×1220×2000mm (32.28*48*78.74″) | 650*850*1650mm (25.59*33.46*64.96″) | 650*850*1650mm (25.59*33.46*64.96″) |
Machine Weight | 250kg | 400kg | 250kg | 250kg |
Grano Sachet Packing Machine's Bag Type
This machine is mainly designed for long stick pouches, suitable for packaging white sugar, salt, vitamins, pepper, seeds, peanuts, nuts and other small granular materials.
Pillow bag
Special-shaped bags
4 sides sealing bag
3 sides sealing bag
