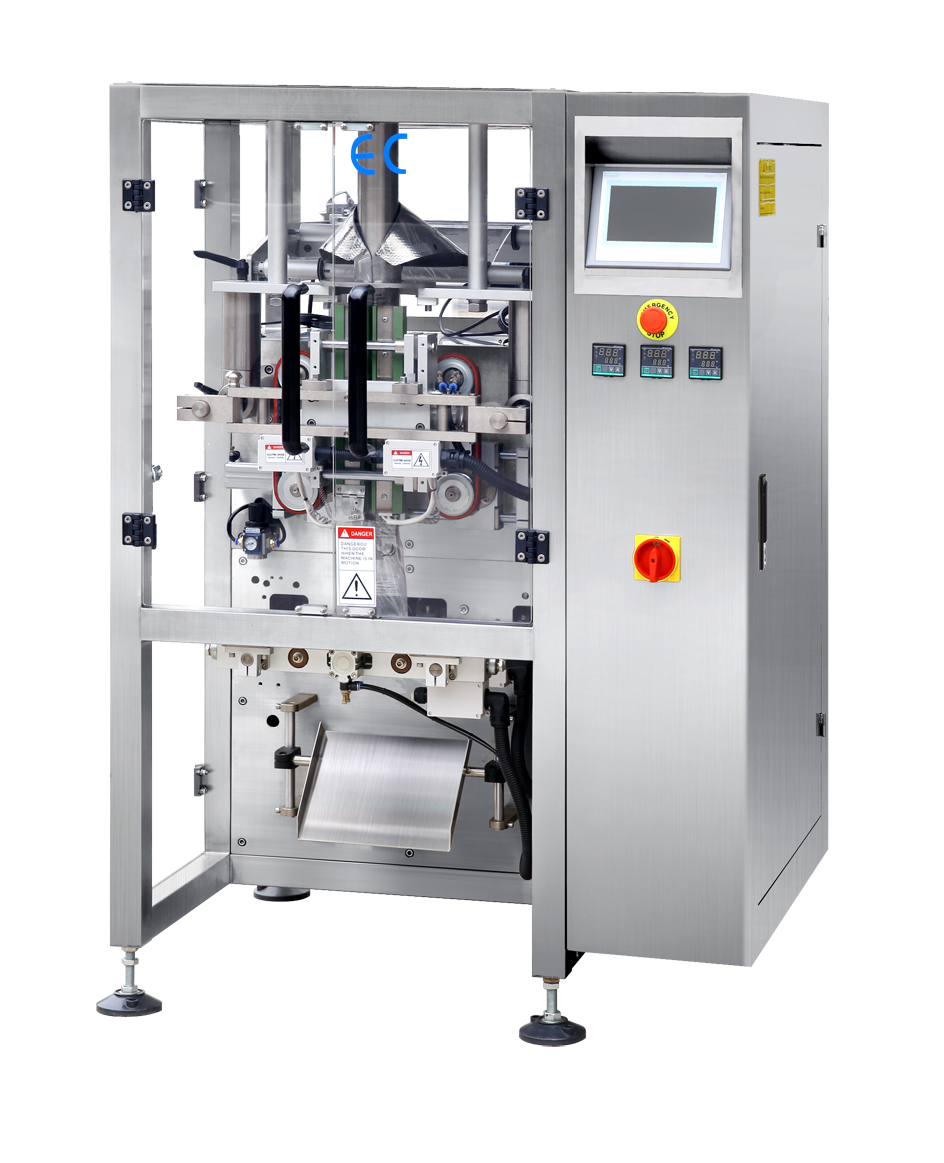

Vertical Form Fill Seal Machine VFJ-420
This vertical packaging machine is an automatic continuous bag forming, filling and sealing equipment. Constructed with food-grade 304 stainless steel, it is equipped with servo film pulling system and precise weighing/dosing mechanism. The machine automatically completes bag forming, material feeding, sealing, batch coding and cutting from roll film. It is widely applied for packing large bags of granular, powder and flake products. With human-machine interface, the machine runs stably and requires easy maintenance. Screw dosing or weighing dosing systems are optional according to different materials, to meet large-volume bagging production requirements for food, chemical, feed and other industries.
VFJ-420 Vertical Packing Machine
- English and Spanish screen display ,operation is simple .
- PLC computer system , function is more stable , adjustment any parameters not need stop machine.
- It can stock ten dispose , simple to change variety.
- Sever motor drawing film , position accurately.
- Temperature independent control system ,precision get to±1℃.
- Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.
- Packing type diversification , pillow sealing, standing type ,punching etc.
- Bag–making , sealing, packing, print date in one operation.
- Work circumstance quiet, low noise.
VFJ-420 Vertical Packing Machine's Bag Styles
This Buena Pack vertical packaging machine is compatible with laminated film and single PE film. It can form pillow bags, gusset bags, box-style bags and other bag types. Optional functions include perforation, connected bags, easy-tear notches, nitrogen flushing and more.
pillow bag
Box-style bags
Gusset bag

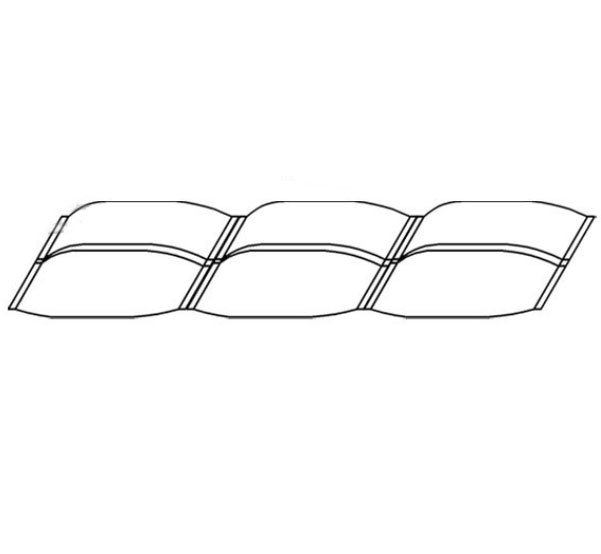

Connected bags
Technical Parameters VFJ-420
| Model | VFJ-420 |
|---|---|
| Bag type | Pillow type bag; Gusseted bag (Option) |
| Operation Mode | Intermittent |
| Speed | 5-65bags/min |
| Bag Length | 50-300mm(L) |
| Bag Width | 50-200mm(W) |
| Reel Film Width | ≤420mm (16.5in) |
| Film thickness | 0.04-0.12mm (40-120mic.) |
| Reel Outer Dia. | 400mm (15.7in) |
| Reel Inner Dia. | 75mm (2.9in) |
| Voltage | AC220V/50Hz, 1phase or Per customer specification |
| Power Consumption | 2.2KW |
| Compressed Air Requirement | 0.65 MPa 0.36 M3／min |
| Footprint | 1080(L) X1300(W) X1400(H)mm |
| Machine Weight | 600kg |
